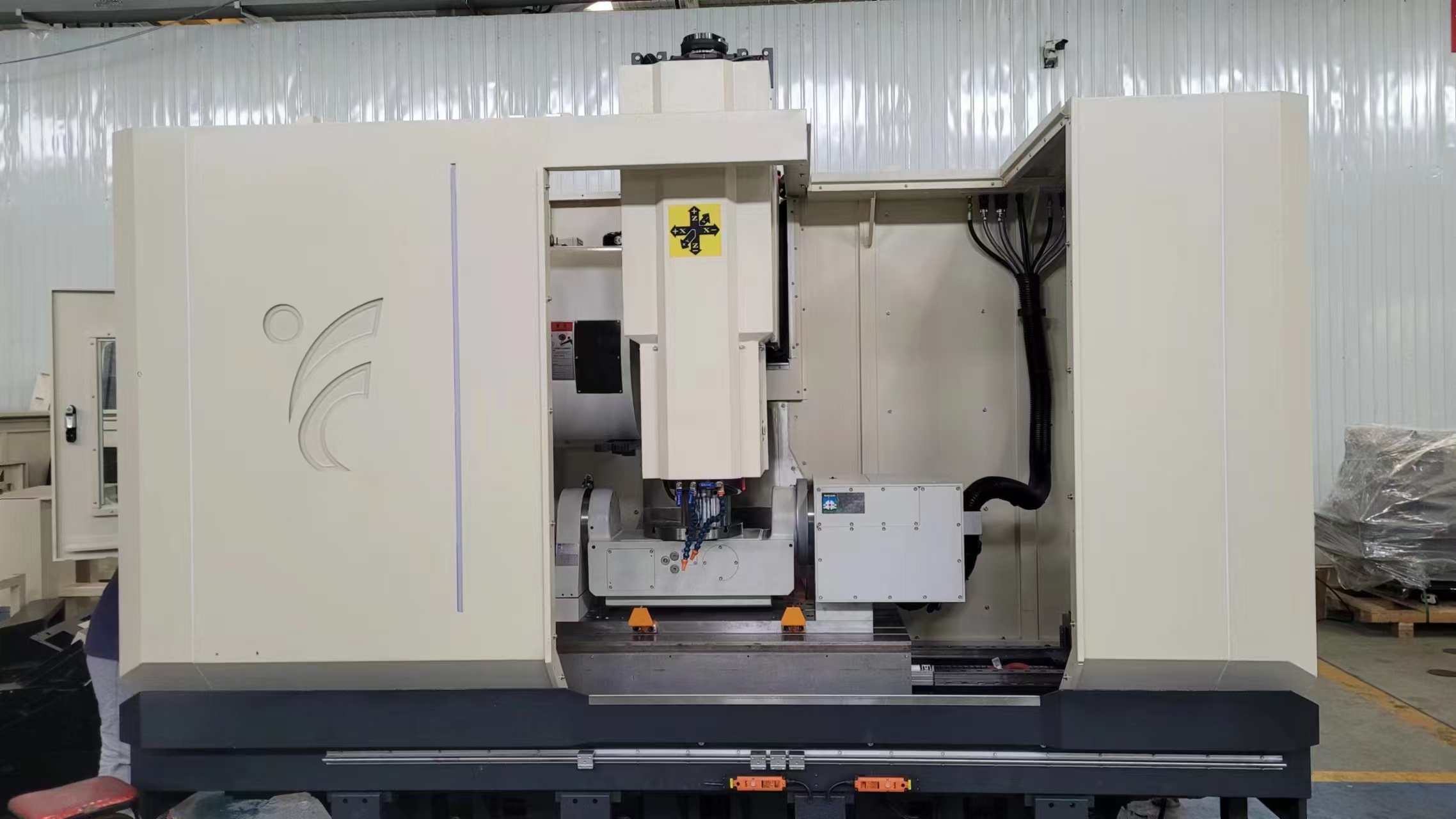

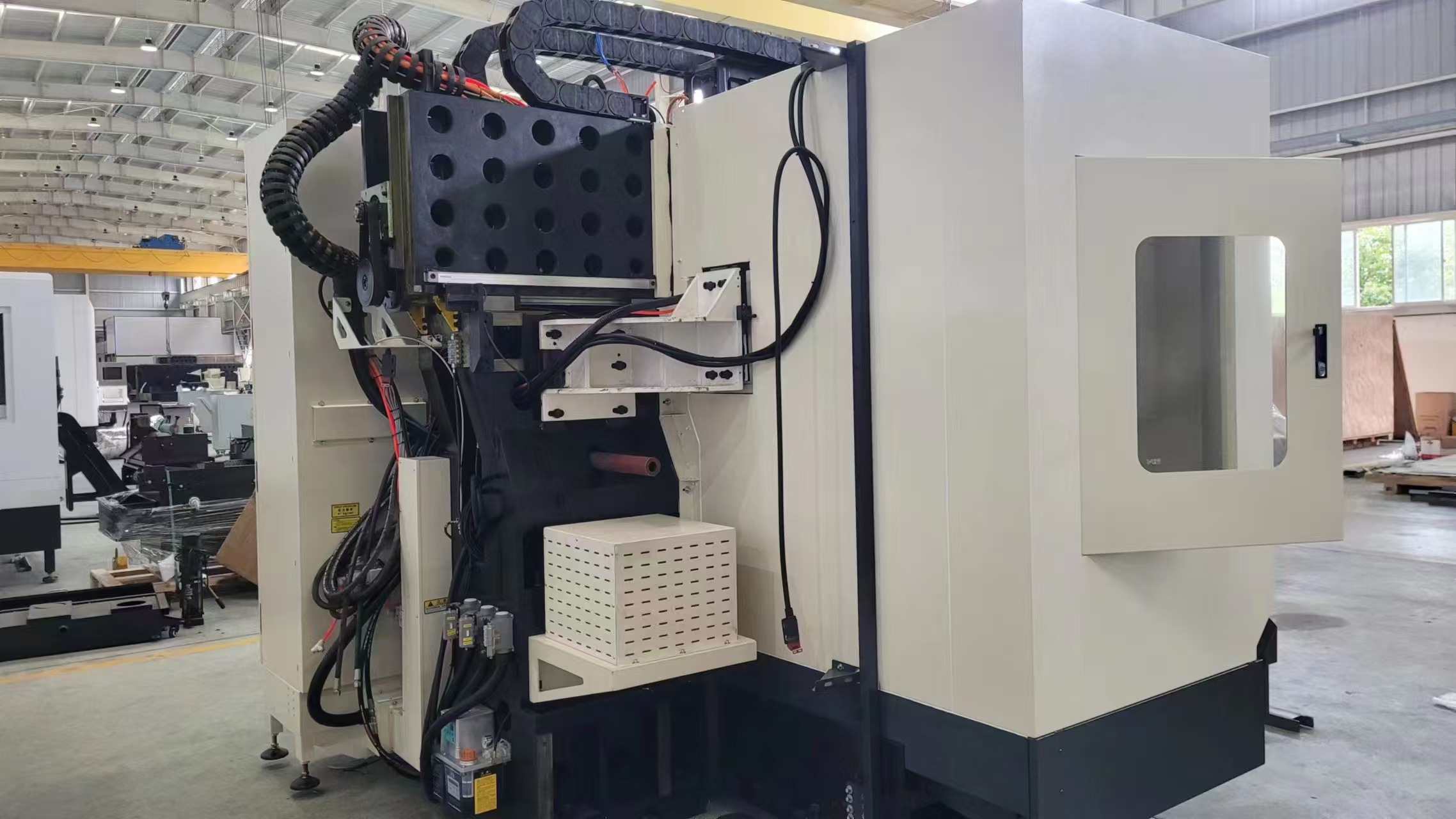

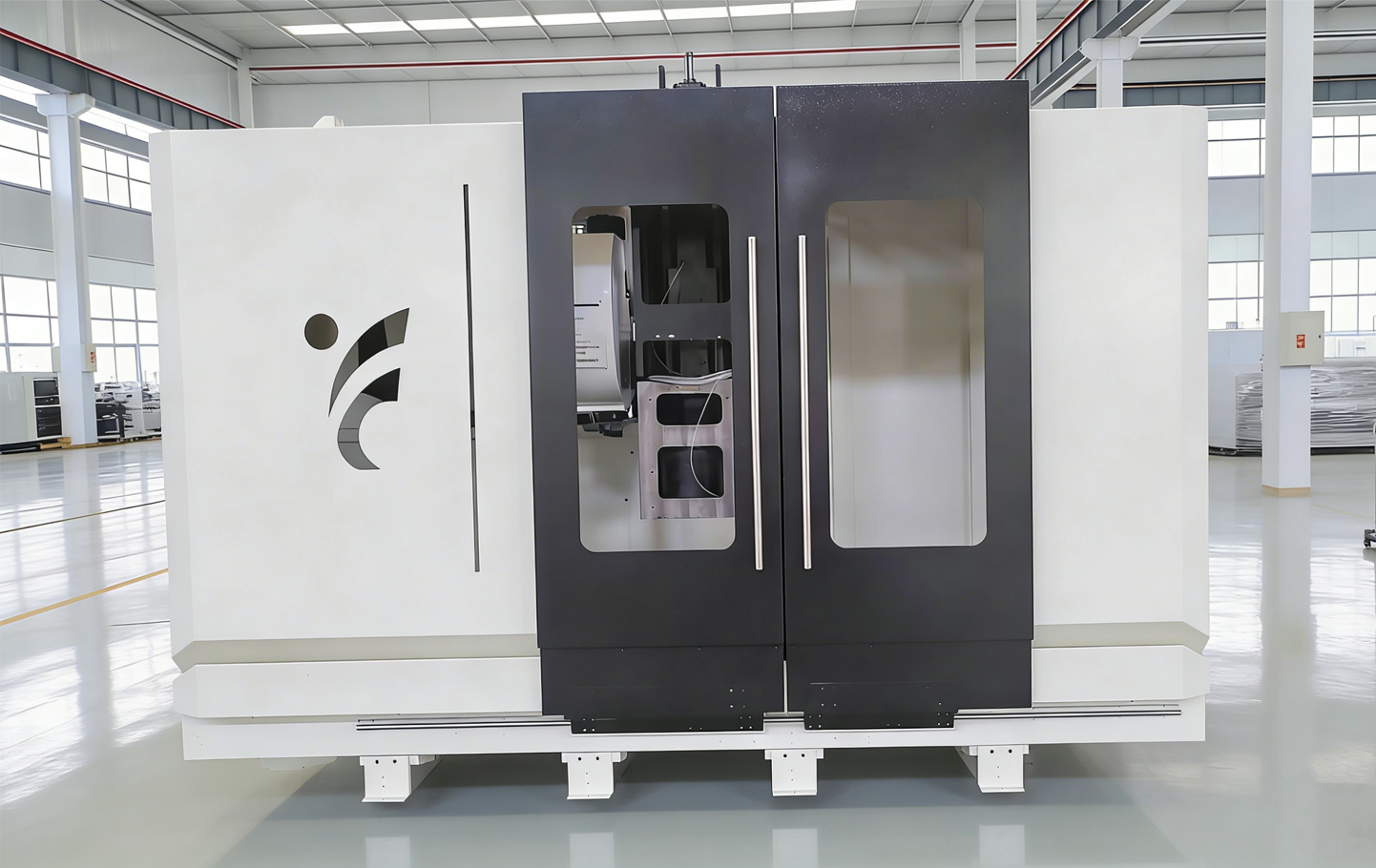

The GX-400 features an innovative T-type structure design, making it a vertical machining center that combines high rigidity with excellent dynamic performance. Its unique table design, which only moves along the X-axis, not only allows operators to clearly observe the machining process at close range through the protective door, enhancing operational convenience, but also effectively ensures personnel safety. Meanwhile, the machine's compact structure significantly reduces workshop space occupation. This model achieves Y-axis feed through the column slide, completely avoiding the error accumulation problem existing in traditional cross slides and significantly improving feed speed and cutting capacity. The Z-axis adopts a pure ram design, equipped with a linear guide rail and a screw drive system. Each side is supported by double sliders, and combined with the large-section ram structure, it provides reliable guarantees for heavy-duty cutting. For different spindle configurations: when a direct-coupled mechanical spindle is adopted, the ram is equipped with a hydraulic-nitrogen balance system for gravity compensation; if a high-speed electric spindle configuration is selected, it is directly driven by a high-torque motor, which eliminates the gravity compensation system while ensuring excellent dynamic response performance.
